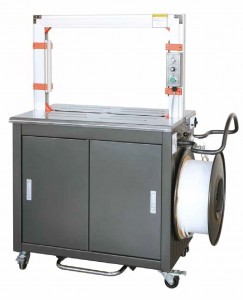

Automatic Strapping Machine (YG-312)

STRAPPING MACHINE

YG 312

YG312 straps up to 40 straps a minute. Either by pressing the start button or the foot pedal, it straps a carton then feeds the strap into the arch ready for the next.
Temperature cooling time and strap tension are all adjustable.
Arch size is suitable for larger boxes.

Model YG-312 Automatic Strapping Machine
Power Source 240v Single Phase
Packing Speed 40 Strap / minute
Tension Force 0-45kg
Hot-adhering Position Bottom
Table Height 850mm
Strap Feed Auto Feed of Strap
Frame 1. Standard Size: W650mm x H500mm (inner size)
2. Material: aluminum alloy frame (it’s possible to customize size)
Strap Size Width 9-12mm, thickness 0.5-0.8mm
Applicable Strap Spool Inner Diameter: 210mm
Machine Dimensions L1180mm × W620mm × H1430mm
