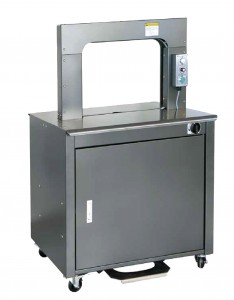

Automatic Strapping Machine (YG-305 N)

STRAPPING MACHINE

YG 305N

YG305N straps up to 56 straps a minute. Either by pressing the start button or the foot pedal, it straps a carton then feeds the strap into the arch ready for the next.
Temperature cooling time and strap tension are all adjustable.
Arch size is suitable for small boxes.

Model YG-305 N Automatic Strapping Machine
Power Supply 240V Single Phase
Packing Speed 56 Straps a minute
Tension Force 0-45kg
Hot-adhering Position Bottom
Table Height 850mm
Strap Feed Auto Feed of Strap
Frame 1. Standard Size: W500mm x H400mm (inner size)
2. Material: Iron frame (it’s possible to customize size)
Strap Size Width 5-9mm, Thickness (0.5-0.8)mm
Applicable Strap Spool Inner Diameter: 210mm
Machine Dimensions L830mm × W700mm × H1385mm
