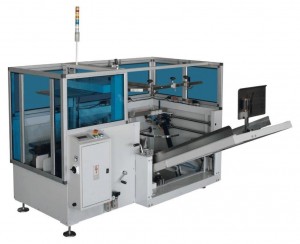

AUTOMATIC CASE ERECTOR (YGCF-20TX)
CARTON ERECTOR
YGCF-20TX
YGEN Carton Erector Automatically form a Carton and seals the erected carton with tape or hot melt.
| Model | YGCF-20TX Case Erector |
|---|---|
| Power Supply | 240v Single Phase (415v 3 Phase optional) |
| Machine Weight | G.W 700kgs/N.W 660kgs |
| Machine Size | L2425 × W1855 × H1300mm |
| Worktable Height | 650mm (standard) – 1000mm (maximum, customer-made) |
| Tape | BOPP Tape or kraft paper tape |
| Tape Size | 4.8 – 7.2cm wide |
| Power Installed | 0.4KW |
| Air Supply | 6 bar, free from water and oil |
| Electrical Enclosure | IP54 |
| Working Speed | 0-12 case/min |
| Carton Size | L250 – 530 x W150 – 400mm x a) H225 – 600mm (H+ W/2, after folding and sealing the bottom flap), b) H150 – 400mm (the machine can be custom-made for bigger size) |
| Machine Control | PLC: “Siemens”, Touch screen: “Siemens” |
| Packing Size | L2.5 x W1.22 x H1.75m |
